Submersible Pumps
V4 Submersible Pump
The Eagle V4 Submersible Pump is engineered for reliable, continuous-duty performance in demanding water-supply applications. Constructed with a corrosion-resistant stainless-steel body and a precision-wound copper motor, it delivers a powerful flow rate with minimal energy consumption — making it the preferred choice for agriculture, borewells, residential complexes, and light industrial use across India.
0.5 HP – 5 HP
Single / Three Phase
Stainless Steel Body
ISI Certified
120 m
Max Head
5 HP
Max Power
50 LPM
Peak Flow
2 Yrs
Warranty
ISI Certified
ISO 9001:2015
BIS Approved
Pan-India Delivery
Technical Specifications
Complete engineering data for the V4 Submersible Pump to help you select the right configuration.
| Parameter | Value |
|---|---|
| Model | V4 Series |
| Power Range | 0.5 HP – 5 HP |
| Phase | Single Phase / Three Phase |
| Voltage | 220 V / 415 V ± 10% |
| Frequency | 50 Hz |
| Max Head | 120 m |
| Max Flow Rate | 50 LPM |
| Outlet Size | 1.5" / 2" (BSP) |
| Motor Type | TEFC, Copper Wound |
| Insulation Class | Class F |
| Casing Material | Stainless Steel (SS 304) |
| Impeller Material | Engineering Plastic / SS |
| Max Sand Content | 100 g/m³ |
| ISI Certification | IS:8034 Certified |
| Warranty | 2 Years |
Certifications
- ISI Mark — IS:8034
- ISO 9001:2015 Certified
- BIS Approved
- Energy Star Compliant
2 Years comprehensive warranty against manufacturing defects. Free replacement within 12 months.
Comprehensive manufacturer warranty covering defects in material and workmanship.
Downloads
Key Features & Advantages
Engineering excellence and premium materials combine to deliver superior pump performance.
Energy Efficient
High-efficiency copper-wound motor reduces electricity bills by up to 20% compared to standard aluminium-wound motors.
Corrosion Resistant
SS 304 stainless-steel casing and impeller withstand aggressive underground water conditions for decades.
Low Maintenance
Sealed bearing assembly and food-grade lubricant require zero routine maintenance during the entire service life.
High Performance
Multi-stage hydraulic design delivers consistent pressure and flow even with fluctuating supply voltages.
Where It's Used
The V4 Submersible Pump is engineered to perform reliably across a wide range of applications.
Agriculture
Irrigation & drip farming
Borewell
Deep-well water extraction
Residential
Apartments & housing societies
Industrial
Process water & cooling towers
Horticulture
Nurseries & greenhouses
Municipal Water
PHED & utility projects
Commercial
Hotels, hospitals & malls
Construction
Dewatering & site supply

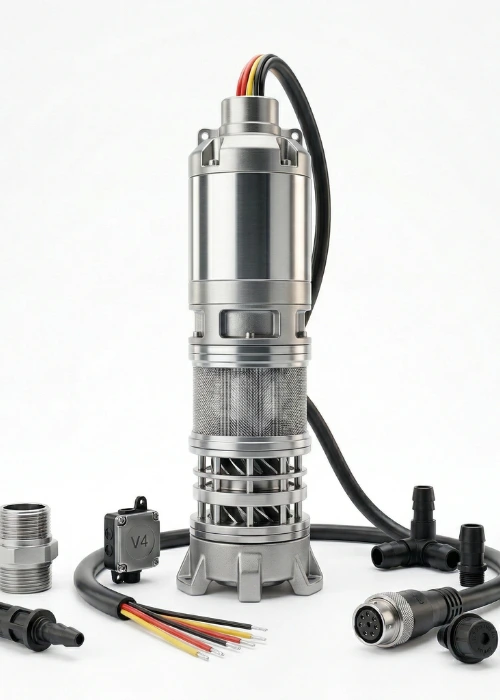

Product Gallery
Multiple views of the V4 Submersible Pump from every angle.
3 images available
